Multi-Stable Analog Memory Array with simultaneous Read & Write functionality.

Work-in-progress

Abstract 🗒

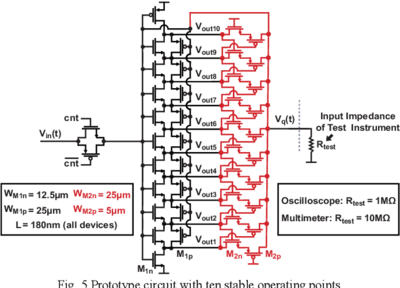

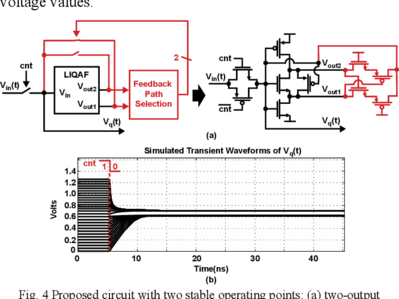

CMOS-based, multi-bit, analog memory circuit which is used in applications including analog neural networks and fuzzy systems. It stores multiple analog values using a newly introduced circuit called Laddered, Inverter Quantizer (LIQAF).

Tools Used

• Skywater_130nm PDK
• Magic Layout Tool
• XSchem Design Tool

Roadmap 🛣

Timeline	Description
Week 1	Getting started with EDA tools (XSchem)
Week 3	Getting started with EDA tools (Magic)
Week 4 - 5	Phase 1 - Replicating existing paper
Week 6 - 7	Phase 2 - Designing memory array with dual port functionality (skywater_130nm)
Week 8 - 9	Phase 3 - Layout of the designed array (Magic)

Progress 🚧

Related Works 🧐

• A Clockless, Multi-Stable, CMOS Analog Circuit
• Multiple-Valued Static CMOS Memory Cell
• A 2-Port 6T SRAM Bitcell Design with Multi-Port Capabilities at Reduced Area Overhead
