feat(audio): composition master bus (data-fx-chain on the root)

[jerrai-bot-heygen]

Before

The composition below is one <video> with audio and a truepeak limiter in the root's data-fx-chain. Studio read nothing from the root chain, so it did not count the video as audio: no meter toggle in the timeline toolbar, no program meter.

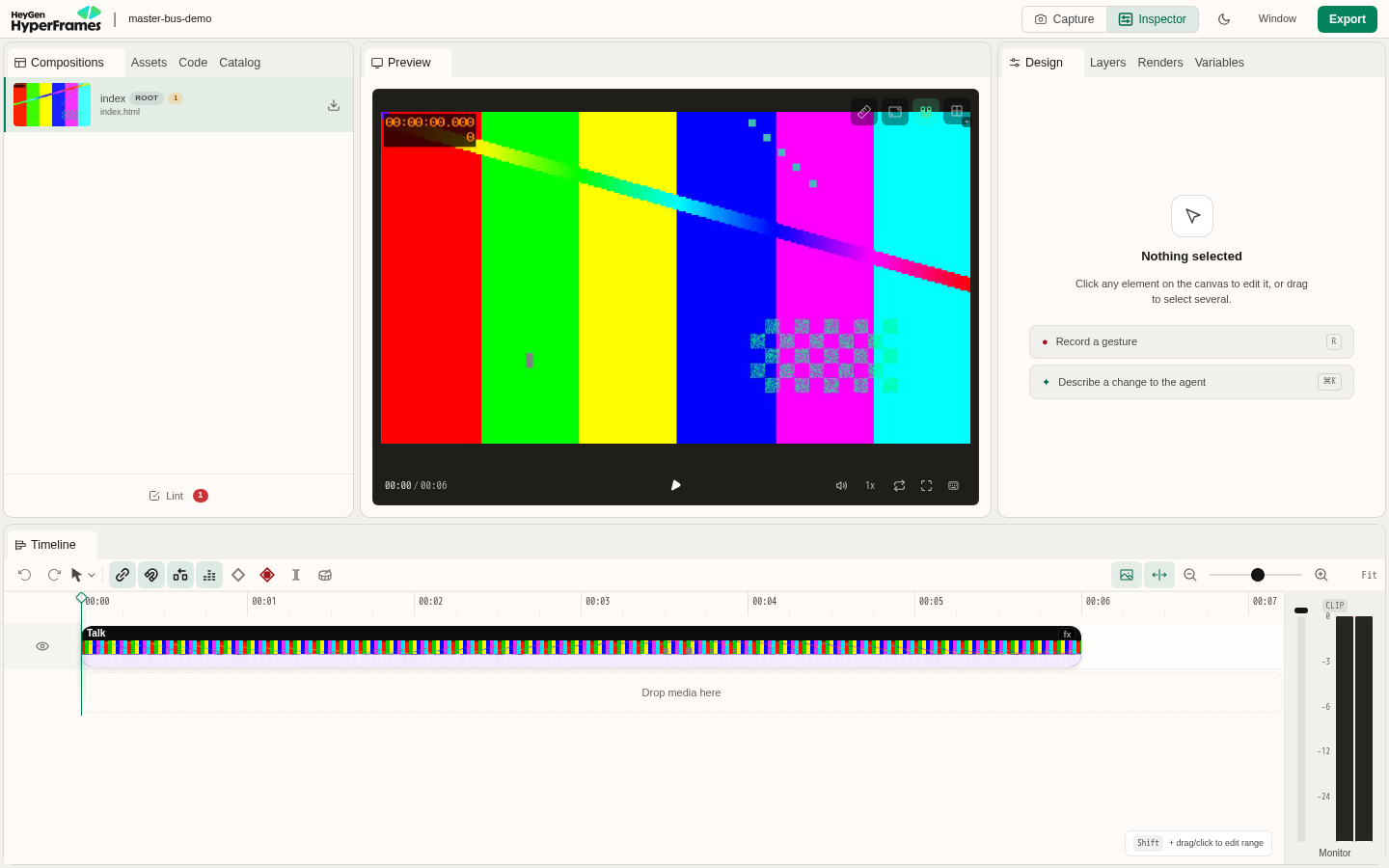

After

Same project. The timeline toolbar has the audio meter toggle and the Monitor meter strip shows (toggled on here), because the root's master chain is read onto the clip and an audible video under a master chain counts as audio.

Captured in a real Studio (Vite dev server) on a 6 s test video with a 330 Hz tone and a root truepeak at -1 dBTP. "Before" is this branch with the two masterChain reads in packages/studio/src/player/lib/timelineDOM.ts disabled, which is exactly the Studio diff against the truepeak PR. Not exercised: playing audio through the meter, dark theme, a muted video, a sub-composition root chain.

What

This adds a composition master bus. A clip can belong to only one audio group, so there was no way to put one effect, such as a true-peak limiter, across the whole mix.

• The master bus is the data-fx-chain on the top-level composition root. No new attribute: a root's data-fx-chain was previously applied to nothing.
• The chain runs once over the sum of every clip and group, after each group's own chain and fader.
• A sub-composition root's data-fx-chain still does nothing (it is neither the master nor its clips' chain), and on clips and groups data-fx-chain means what it always did.
• It stacks on the truepeak PR.

Preview and render

	Where the chain runs
Preview	the transport splices the chain between the sum of clips and groups and the monitor
Render	mixAudioTracks writes a float WAV, applyAudioFxChain runs the chain, and ffmpeg encodes AAC last

• Only the top-level root is read, so repeating a sub-composition cannot stack master chains. There is no lint rule: the attribute is valid on every element it can sit on.
• One behaviour change: a stray data-fx-chain left on a top-level root, inert before, now runs as the master bus. Nothing in this repo writes one there.
• An unreadable master chain fails the mix with elementId: "master". In preview it plays dry, the same as a broken group chain.
• A render with no master chain takes the old code path unchanged.
• There is no master automation: data-automation on the root is not read as the master's.

Preview joins every audible video (round 2)

The master chain exists only inside the Web Audio graph, and a <video> used to join that graph only for its own chain, group, automation or a volume over 1. So a talking head under a root truepeak played dry in preview while the music was limited, and a composition whose only audio is video got no master chain at all. Render already summed every audible element into the master.

A master chain on the top-level root is now a reason to join, like a video's own data-fx-chain:

• audibleVideoNeedsWebAudio takes a masterChain field (packages/core/src/audibleVideo.ts);
• joinsWebAudio in packages/core/src/runtime/init.ts passes readMasterFxChain(el.ownerDocument);
• audio elements already always joined.

Unchanged: a root with no chain keeps a unity video on native output; muted and data-has-audio="false" videos stay out; a chain on a sub-composition root does not count. The root chain is read when media is scheduled (play, seek, rate change), the same moment a video's own data-fx-chain is read.

Tests: a plain audible video at unity under a root chain is scheduled and acquires a media element source; the same video with no root chain stays native (existing test); a video-only composition plus an audio clip both join; a muted video stays out; a sub-composition root chain does not count; at transport level a plain video played from its element goes through the master bus (masterGain is spliced out of the monitor). Reverting the joinsWebAudio line fails 3 of the new init tests, and reverting the audibleVideo.ts change fails those 3 plus the predicate test.

Tests

• Engine tests (real Chrome + ffmpeg):
  • a master limiter holds the summed mix of two hot tones;
  • ordering: a group limiter at -20 with a 0.5 fader, then a +12 dB master, lands at -14 dBFS (a fader before the limiter would give -8, a master before the group -26);
  • an unreadable chain is a failure;
  • from authored HTML, a -6 dBTP limiter then a -6 dB gain in the root chain over two 0.3 tones lands at -12 dB; per clip it would read -10.4 and applied twice -18, so it runs once over the sum;
  • the sum stays float until the chain reads it (a -6 dB master gain over a +5 dBFS sum lands at -1, not at -6);
  • a fatal FX error in the master pass or in a group bus removes the work directory (audioMixer.test.ts).
• The root chain reaches clips only as the master; a sub-composition root's chain is neither master nor its clips' chain; the top-level root wins when both carry one.
• Also covered: the transport, the graph, shape, tail and latency.
• Not run locally (left to CI): the producer, studio and full suites.

Docs

docs/reference/audio-effects.mdx gets a master-bus section. The hyperframes-audio skill is updated in SKILL.md, attributes.md and fx-registry.md.

Round 2 minors

• Temp dir on a master-pass error (audioMixer.ts): the final mix now runs in try/finally and the group AudioFxRenderError rethrow removes the work directory first, so neither path leaves the float sum on disk. Both are covered by tests that fail without the change.
• "-6 dB over two clips gives -12 dB" test: it could not tell a per-clip chain from one over the sum (gain is linear), and its comment's "-9" was wrong. It now uses a limiter then a gain, where per clip reads -10.4 and twice reads -18.
• Fader-order test: groupVolume is 0.5 now, so the fader sits between the group limiter and the master and the test fails if either order changes.
• Sum stays float: new test; a 16-bit clipped sum would pass the old limiter test.
• "Four rules exist": now "Three rules exist" (the master-bus lint rule was removed with data-master-fx-chain).
• Bad master chain: docs now say what happens. In this repo audio_processing_failed blocks the render (RenderQualityError) under every strictness setting, so nothing is exported; preview plays dry with no message. They also say that no lint rule checks a chain's contents.
• Sub-composition file on its own: documented. Opened or rendered alone it is the top-level root, so its chain is the master bus there.
• Nested-root lint gap: moot. The lint rule that skipped data-composition-id elements went with data-master-fx-chain; no lint code is in this PR, and the docs no longer promise a warning.
• Preview skips a seek: the master bus re-anchors on a seek and now also clears the limiter's delay line and held gain (same reset as the group bus, in the truepeak PR).
• Studio meter: hasProjectAudio hid the meter for a video-only composition whose only routing is the root chain. TimelineElement.masterChain now carries the root's data-fx-chain (set in timelineDOM.ts, both the manifest and DOM paths), and the existing audibleVideoNeedsWebAudio call sees it. Tests in audioMeterMath.test.ts and timelineDOM.test.ts; not run locally (no Studio dependencies installed), left to CI.
• Fallow audit (non-required, was red): webAudioTransport.setRate was over the CRAP threshold; its group and master loops are one setBusRate. An introduced 8-line clone in the engine test is a shared mixedPeakDb helper. Exit 0 locally.
• Comments: every block this PR adds is 4 lines or fewer, and the one-line comment I had added to audibleVideo.ts is gone because the comment-share ratchet (run by CI, first time on that commit) refuses a raised share.

Round 4

• Master chain with only a producer-added track (Miguel): the master chain was carried on each parsed AudioElement, so a track the producer adds itself never had it. That is appendAutoDetectedVideoAudio (extractVideosStage.ts) and the browser-discovered audio in probeStage.ts: a <video> whose src is set at runtime has no parsed audio entry, so the producer adds one after probing. When that was the only audio, nothing carried the chain and the export had no ceiling and no warning.
  • It is now a composition property. parseMasterFxChain(html) runs at compile, CompiledComposition and CompositionMetadata carry it, and runAudioStage passes it to processCompositionAudio (in-process and distributed plan). AudioElement.masterFxChain is removed so there is one source.
  • A static <video> with no data-has-audio was not affected: the compiler stamps data-has-audio="true" and the parsed track carried the chain.
  • Measured on a real local render (producer from source, software Chrome, draft quality, 3 s clip): the only audio is a <video> whose src is set by a script, and the root has a truepeak at -6 dBTP. The source clip peaks at -0.2 dBFS. Before this change the output peaks at -1.4 dBFS (sample and 4x true peak; the pipeline's own -1 dBTP safety lowered it 1.2 dB), 4.6 dB over the authored ceiling. With it the output peaks at -5.7 dBFS, 0.3 dB over the ceiling (the limiter holds a 4x estimate on the float mix, then AAC encoding adds a fraction of a dB). One fixture, one run each.
  • Tests: audioStage.test.ts (a track added by appendAutoDetectedVideoAudio over an empty audios, chain reaches the mixer); htmlCompiler.test.ts (the compiled composition exposes the root chain); one test per forward (compileStage.test.ts, renderOrchestrator.masterBus.test.ts, distributed/plan.masterBus.test.ts), each red when its forward is removed; the engine master-bus tests now pass the chain beside the tracks. Dropping the forwarding in audioStage.ts fails the stage test; dropping it from the compiled composition fails the compiler test; ignoring it in the mixer fails four engine tests.
• "Never clips" (Miguel, on the truepeak PR): the plain limiter is level-following with no lookahead, and Level after is applied past its ceiling. Studio's description, panel text, knob label and summary, and the hyperframes-audio skill, no longer say nothing gets past it. They say a fast or inter-sample peak can pass and point to the true-peak limiter for a delivery limit. The copy lives in files from the truepeak PR (audioFx.ts, audioFxCopy.ts), changed here. A copy test guards the wording; restoring the old text fails it.

Follow-ups

• Master-bus automation, and Studio UI for authoring the master chain.
• The distributed-render path is untested.
• The pitch shifter's latency is still not trimmed in render. chainLatencySamples is where that fix would go.

— Jerrai

[miguel-heygen]

Request changes at b2f8e12b on one decision. The code is otherwise sound.

Blocking: a new authored attribute

data-master-fx-chain (packages/core/src/audioGroups.ts:135, documented at docs/reference/audio-effects.mdx:183) is a new authoring attribute, plus a lint rule for it. The project's rule is no new authoring format unless it rides an existing pattern, and there is one here.

• data-fx-chain already carries a chain on <audio>, <video> and <hf-audio-group>.
• The same attribute on the top-level composition root, read by the same resolveMasterBusElement, gives a master bus without a new name.
• The only reason visible in the code for a separate name is keeping the root's data-automation from being read as the master's. The reader can ignore that attribute on the root.

Please reuse data-fx-chain on the root, or hold this until the new name is agreed.

Minor

• packages/engine/src/services/audioMixer.ts:1136: an error in the master pass skips the temp-dir cleanup at :1674. The full float sum (about 1.4 GB per hour of audio) stays on disk; groups have the same gap at :1643.
• A bad master chain makes a video-only export. Under the default warning policy, render reports audio_processing_failed and ships video only, while preview plays dry with no message (runtime/audioFx.ts:66-69). One typo on the root silences every export of that composition, and no lint rule checks chain contents. The docs' "fails the whole mix" should say so.
• packages/lint/src/rules/media.ts:1157 skips every element with data-composition-id. A nested sub-composition root carrying the attribute, which is ignored at runtime, gets no warning, though the docs say it does.
• Test gap in audioFxRender.test.ts ("limits the sum"): nothing proves the sum stays float before the limiter. A clipped 16-bit sum would still pass.
• Comment blocks over four lines: audioGroups.ts:137 (5), runtime/audioFx.ts:123 (5), runtime/webAudioTransport.ts:628 (7), audioMixer.ts:1116 (7).

Checked

• Render without a master chain is byte-identical to before: same ffmpeg call, same AAC args.
• 48 kHz stereo float throughout, with no clipping between the sum, the chain and the encode.
• Preview and render agree on order (after each group's chain and fader, once over the full mix) and on gain staging.
• Volume, mute and the meter come after the chain.
• Sub-composition roots are ignored in both preview and render.
• Live attribute edits are heard, and teardown disposes the chain.

[github-actions]

Edit accuracy: accurate 2061 (base branch 2061), smooth 1623 of those

The gate passes.
Smoothness is reported in the artifact, not gated. A case fails only if it fails 2 of 3 runs.

Quarantined, measured but not gated (0)

Unstable (1)

• crop-none-px-r30-root-z100: tracking 0.04, pressJump 0, drop 40.08, reload 40.08, render 34.74, renderKey -, undo true, teleport true / tracking 0.04, pressJump 0, drop 0.08, reload 0.08, render 0.26, renderKey -, undo true, teleport true / tracking 0.04, pressJump 0, drop 0.08, reload 0.08, render 0.26, renderKey -, undo true, teleport true

[miguel-heygen]

Request changes at 6b7b93e2 on one parity bug. The authoring question is resolved.

Resolved

• The master bus is the existing data-fx-chain on the top-level composition root. data-master-fx-chain and its lint rule are gone, with no leftovers.
• No tracked composition in the repo carries data-fx-chain on its root, so nothing changes its audio on upgrade.

Blocking: preview skips the master chain for a plainly audible <video>

• The master chain is attached only through the WebAudio graph (packages/core/src/runtime/webAudioTransport.ts:634, :669).
• A <video> joins that graph only for volume over 1, its own chain, automation or a group (packages/core/src/runtime/init.ts:384-393, packages/core/src/audibleVideo.ts:16-25). A root master chain isn't a reason.
• Render does sum that video into the master (packages/engine/src/services/audioMixer.ts:587-622).
• Scenario: a talking-head video plus music under a root truepeak. Preview limits only the music, and the meter never sees the video; the export limits both. A composition whose only audio is video gets no master chain in preview at all.
• Fix: a root master chain makes every audible video join.

Minor

• The "-6 dB over two clips gives -12 dB" test can't tell a per-clip chain from one over the sum, because gain is linear. Its comment's "-9" is wrong, though the truepeak test beside it does catch the per-clip case.
• The fader-order test uses groupVolume: 1, so it doesn't test the fader.
• docs/reference/audio-effects.mdx:510 says "Four rules exist" but lists three.
• A bad root chain ships a video-only export with a warning, and the docs don't say so.
• A sub-composition file previewed or rendered on its own applies its root chain. That's undocumented; the docs say it is "not applied to anything".
• audioMixer.ts:1136: the master pass has no catch, so it skips the temp cleanup at :1674.

[miguel-heygen]

Request changes at 6dfbb76a on two blockers. Preview routing of plain videos is fixed.

Blocking

1. The required check Studio and player captures is red. The PR now touches packages/studio (the meter), and the body has no ## Before / ## After captures.
2. The export silently drops the master chain when every audio track is auto-detected.
   • The parser emits video audio only for video[id][data-has-audio="true"] (packages/engine/src/services/audioMixer.ts:651), and attaches masterFxChain only to the elements it emits (:622).
   • A plain <video> without that attribute gets its audio track from the producer (packages/producer/src/services/render/stages/extractVideosStage.ts:571), with no chain.
   • The mixer takes the chain from the first element that has one (audioMixer.ts:1520).
   • So a composition whose only audio is <video src="talk.mp4"> under a root truepeak exports with no ceiling and no warning, while preview applies it (packages/core/src/runtime/init.ts:395).
   • Passing the master chain once per composition, not per element, fixes it.

Fixed

• A plain audible video now joins WebAudio only when the top-level root has a chain. Muted videos and data-has-audio="false" stay out, and sub-composition roots don't trigger it.
• The temp dir is removed on every exit, with tests that fail without it.
• No data-master-fx-chain is left anywhere.

Follow-up

• A root chain added or removed mid-play isn't picked up by videos that are already playing until the next play.
• A cross-origin video without crossorigin plays dry in preview but is limited in render. Worth a docs line.
• The fader-order test uses linear gains, so it can't tell the two orders apart.

[mintlify]

Preview deployment for your docs. Learn more about Mintlify Previews.

Project	Status	Preview	Updated
hyperframes	🟢 Ready	View Preview	Oct 11, 2026, 5:39 PM

💡 Tip: Enable Automations to automatically generate PRs for you.

[miguel-heygen]

Approve at 435694da. Both blockers from 6dfbb76a are resolved, every required check is green, and behaviour is unchanged since 782f6bfb apart from the rebase and two CI-only commits.

What I checked

• Range-diff 782f6bfb..435694da: the five #5419 commits drop out (merged). Three commits are identical. The fourth differs only in surrounding lines that came from main (dash cleanups in audioFx.ts and audioFxCopy.ts). The two new commits only drop three field comments and list plan.masterBus.test.ts with the integration tests (and repin its hash).
• Blocker 1 (captures): Studio and player captures passes and the body has Before and After.
• Blocker 2 (master chain dropped for producer-added tracks): the chain is now read once from the top-level root (parseMasterFxChain) and handed to processCompositionAudio beside the tracks. Both callers pass it: the local render (renderOrchestrator.ts:3359) and the distributed plan (plan.ts:1133), which mixes once before chunking. So a composition whose only audio is a plain <video> gets its root chain in the export, once, over the sum.
• Tests: core 438/438, engine 94/94 (none skipped, with ffmpeg and a headless browser), producer 25/25 plus htmlCompiler.test.ts 142/142, studio 61/61. Each of the eight key fixes was reverted in turn and its test failed.

Follow-up (not blocking)

• A scene rendered on its own inside a project uses the index's master chain, not its own. standaloneEntry.ts wraps the scene in a shallow clone of the index root, which keeps the index's data-fx-chain, so the scene root is nested and its chain is never applied. docs/reference/audio-effects.mdx:201-203 says the opposite. Either fix the docs (and the audio skill) or carry the scene's chain onto the wrapper, with a test that puts chains on both roots.
• Long exports with a master chain fail. The master pass writes the whole mix as one float WAV and reads it back in one call (audioMixer.ts:1054, audioFxRender.ts:286), so past about 93 minutes the read exceeds Node's 2 GiB file limit. Process it in blocks, or fail early with a clear message.
• audioMixer.ts:1445 says a bad master chain fails fast, but it is parsed after every clip has been processed. Parsing it first gives the same error with no wasted work.
• The tests that prove the chain runs once over the sum skip in CI because that job has no browser.
• resolveMasterBusElement (audioGroups.ts:135) is a second rule for "the root" that differs from findRootCompositionElement on data-root="true".
• The docs line that preview routes "every audible <video>" through the master bus doesn't hold for a cross-origin video without crossorigin, which plays dry in preview but gets the chain in the render.
• Nit: the parseMasterFxChain doc comment (audioMixer.ts:525) runs five lines with its delimiters; two lines would say it.
