Fix Grid and Graph 500 errors for cyclic TaskGroup dependencies

[dheerajturaga]

Since 3.3.1, the Grid and Graph views return HTTP 500 for Dags whose TaskGroups depend on each other when each group is treated as a single unit. The task graph itself is acyclic, and these Dags parse, schedule and run normally. #69933 made the group-level sort account for group-to-group and cross-group edges, so these group-level cycles now raise instead of rendering in an arbitrary order.

Two shapes trigger it:

• Sibling groups with task-level edges in both directions (a1 >> b1 and b2 >> a2 across group1 and group2).
• Two tasks in one group bridged by a task outside it (a >> ext >> b). A task with no upstream inside its own group counts as a root of that group, so ext and the group depend on each other.

Filtering can also create the cycle in a Dag that has none. With root=g.first&include_downstream=true, partial_subset() can drop a task's only in-group upstream and turn it into a group root. So Grid and Graph need to tolerate group-level cycles whatever is decided about rejecting these Dags at parse time, which is being discussed in #73678.

The serialized TaskGroup sort now orders the siblings on a cycle as one unit, placed where its first child is declared, with its members in declaration order. Everything around the cycle keeps the existing pass-numbering order, and Dags without a group-level cycle are unaffected. The serialized and Task SDK sorts share this fallback through TaskGroupMixin in the shared dagnode library, so the deprecated DAG.topological_sort(), which has raised AirflowDagCycleException for these Dags since 3.3.1, orders them the same way. Detecting these Dags at parse time is left to the deprecation check in #73746.

This replaces #72822 with a narrower change: it drops the task-level cycle re-check (task-level cycles are already rejected at parse time).

related: #73678

Screenshots

Graph view with this change, all TaskGroups expanded. Without it, the Graph view returns HTTP 500 for each of these.

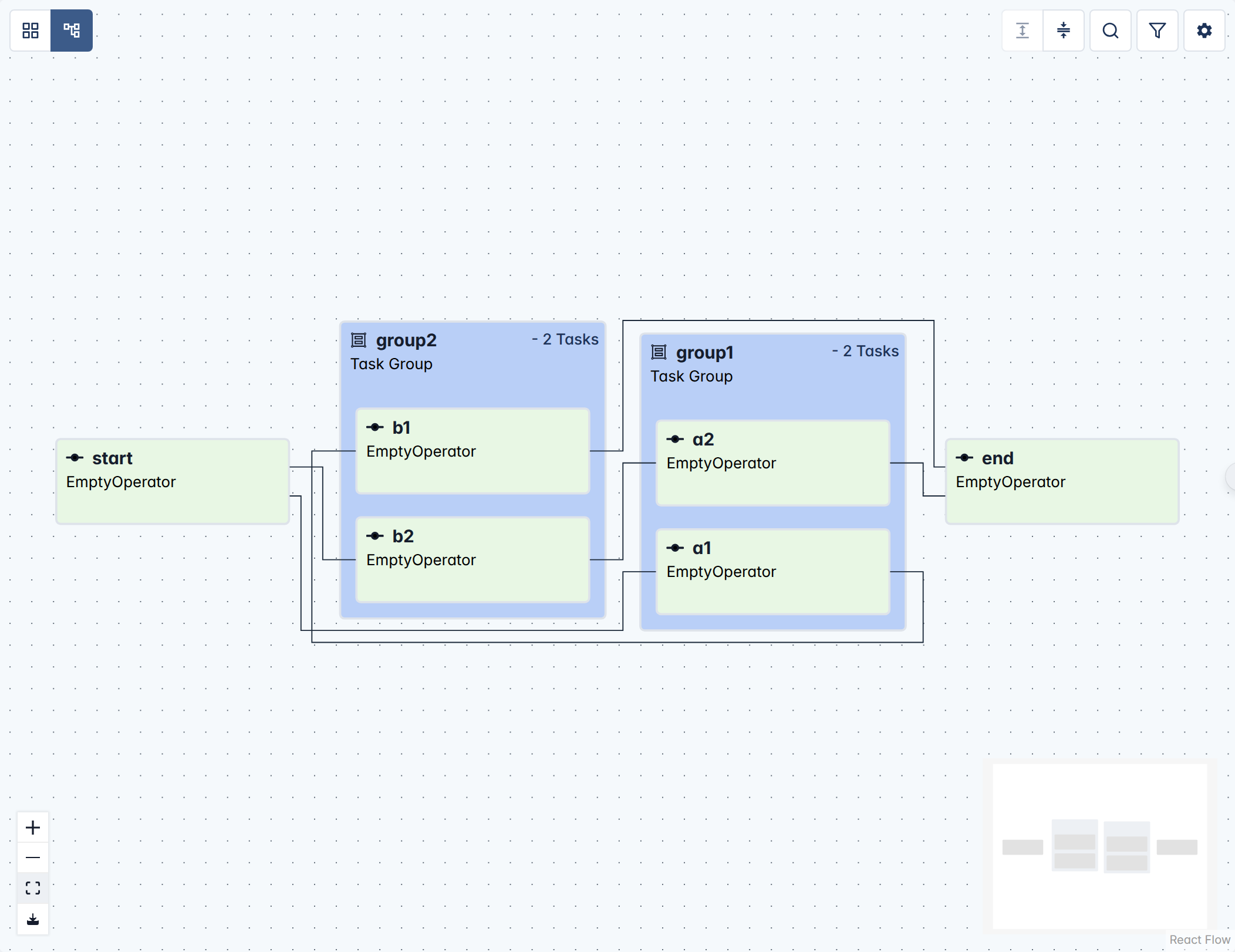

Sibling groups (a1 >> b1 and b2 >> a2)

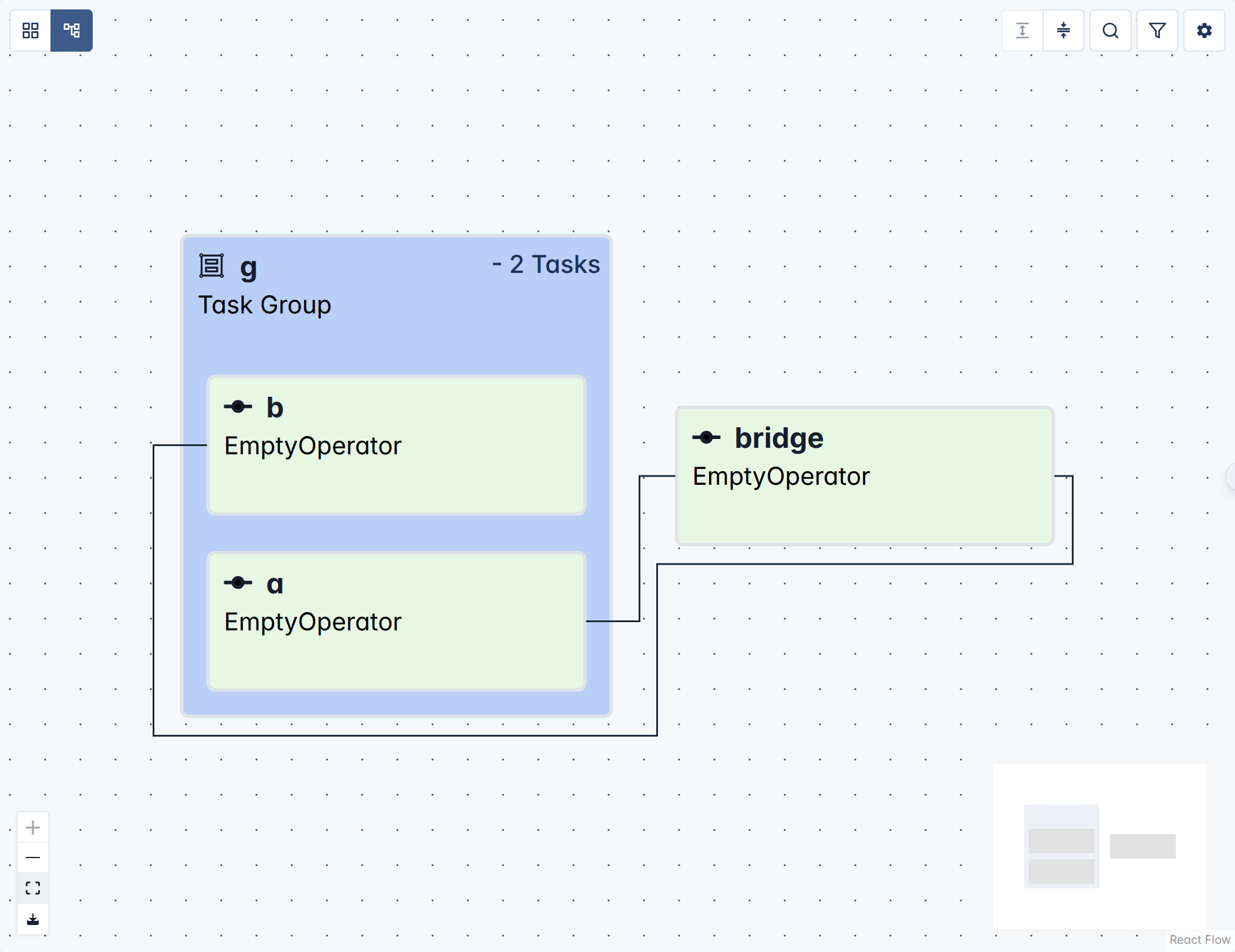

A group bridged by an outside task (g.a >> bridge >> g.b)

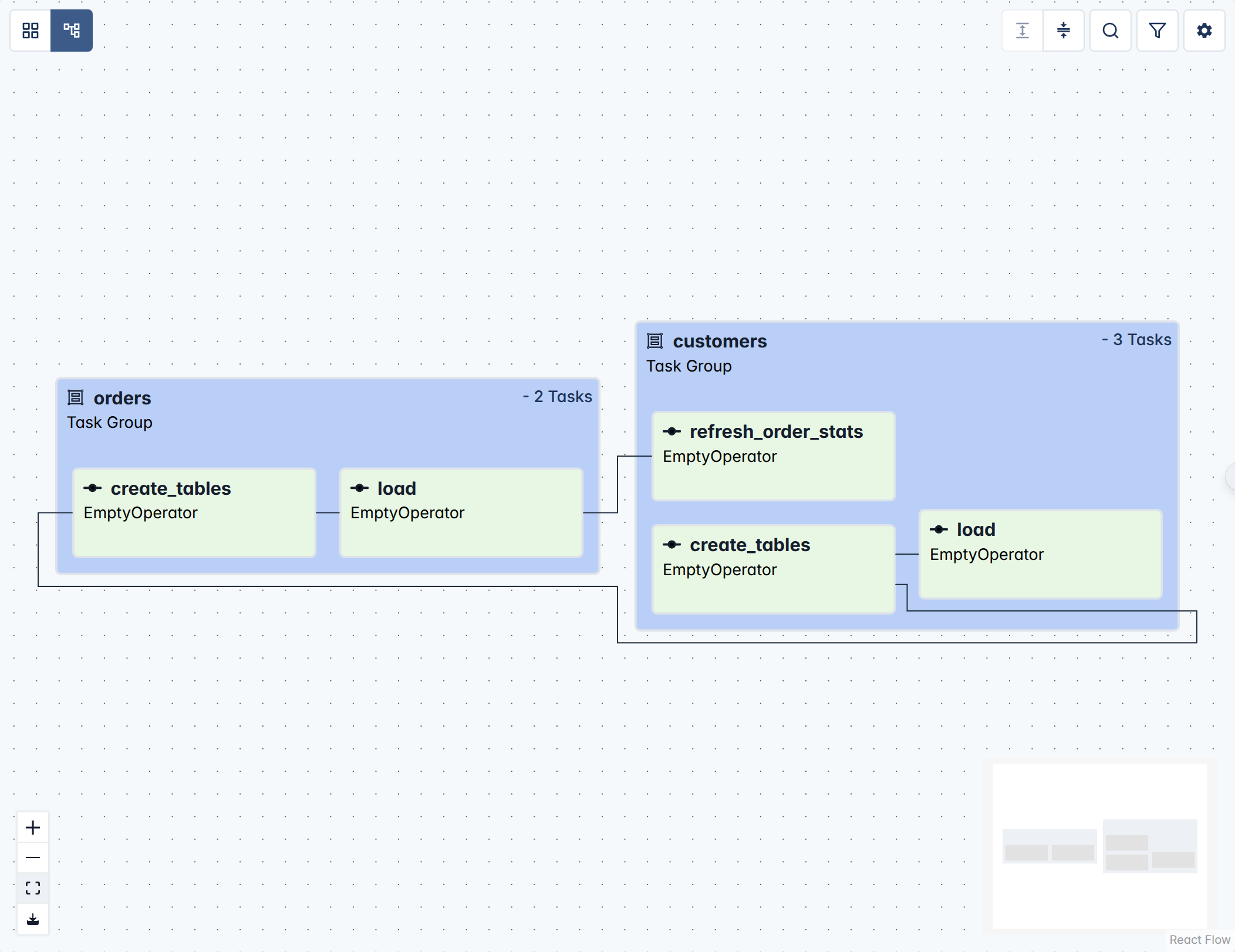

One group per database schema

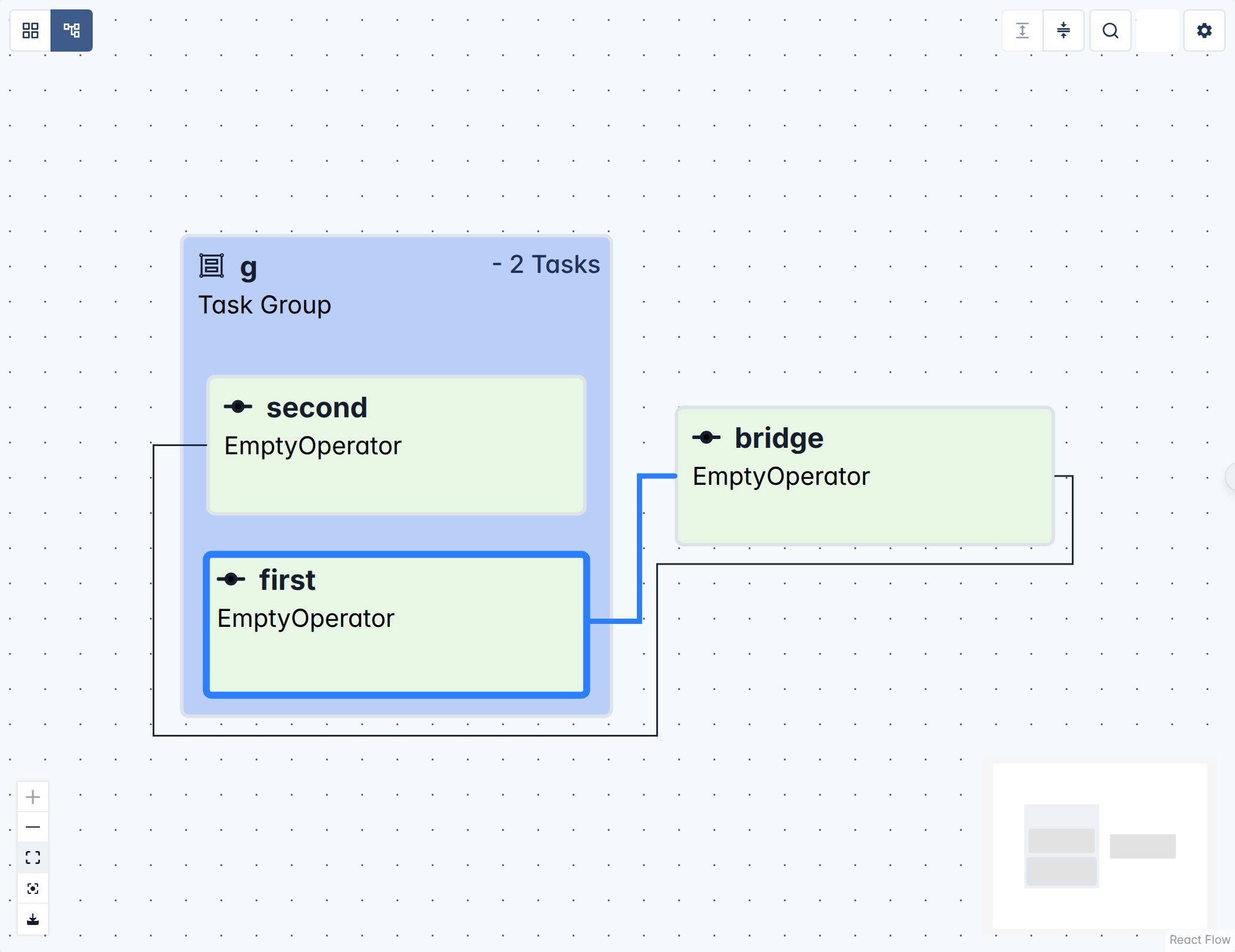

Filtered view (root g.first, Downstream). The full Dag has no group-level cycle; the filter creates one.

More: a ring of three groups, a cycle inside a nested group, and the filtered example Dag without the filter

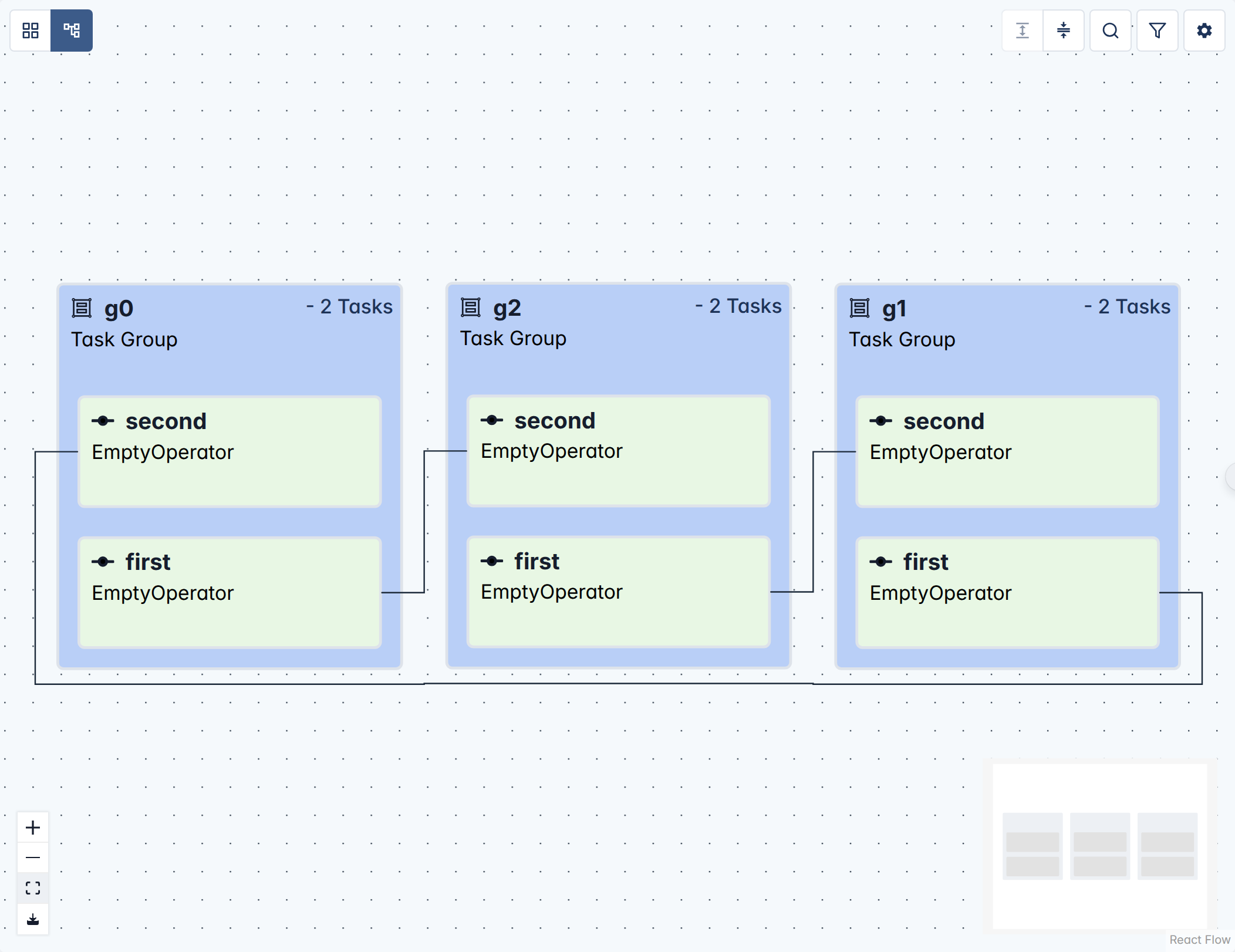

Three groups in a ring (takes the pass-numbering path)

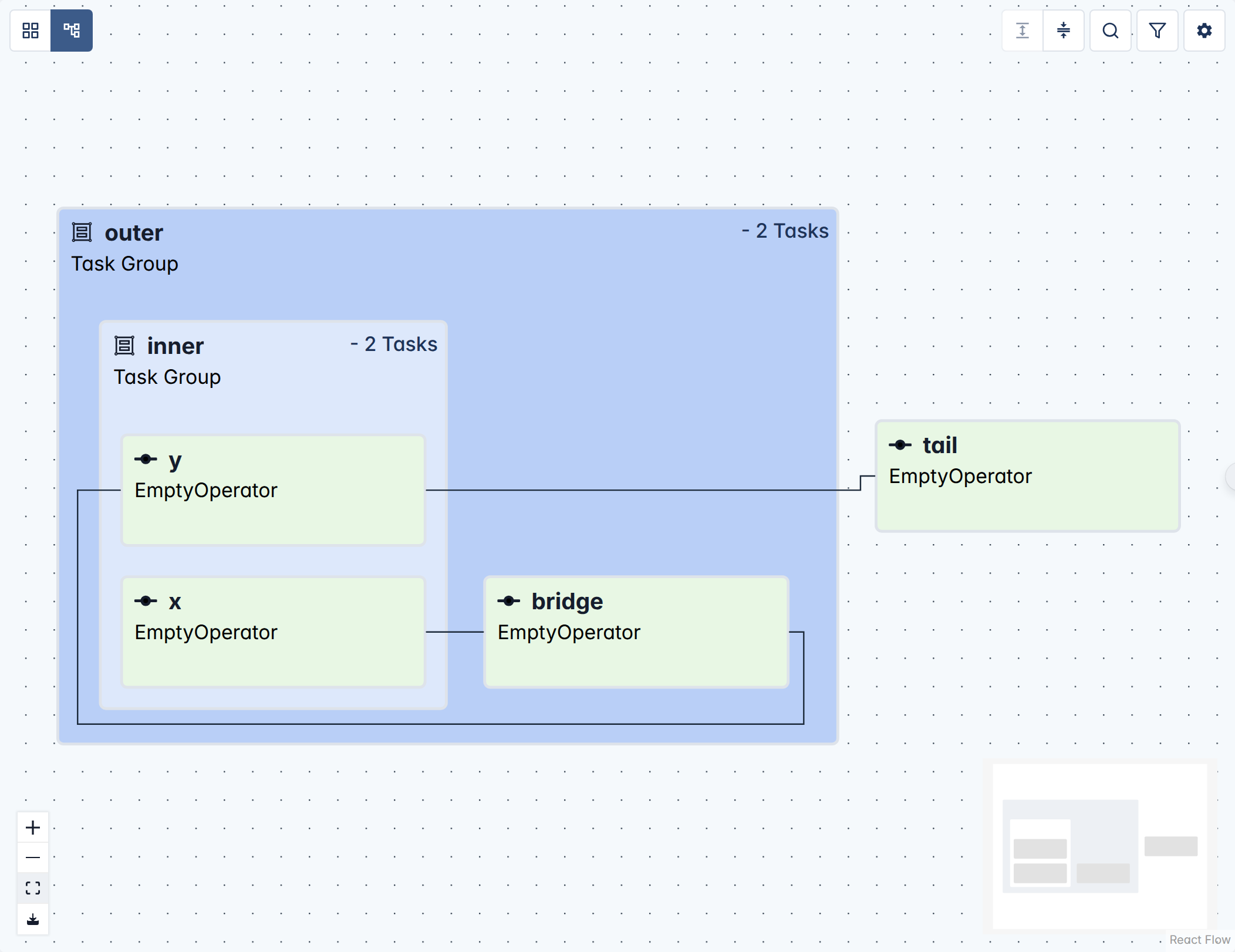

Cycle inside a nested group (outer.inner and outer.bridge)

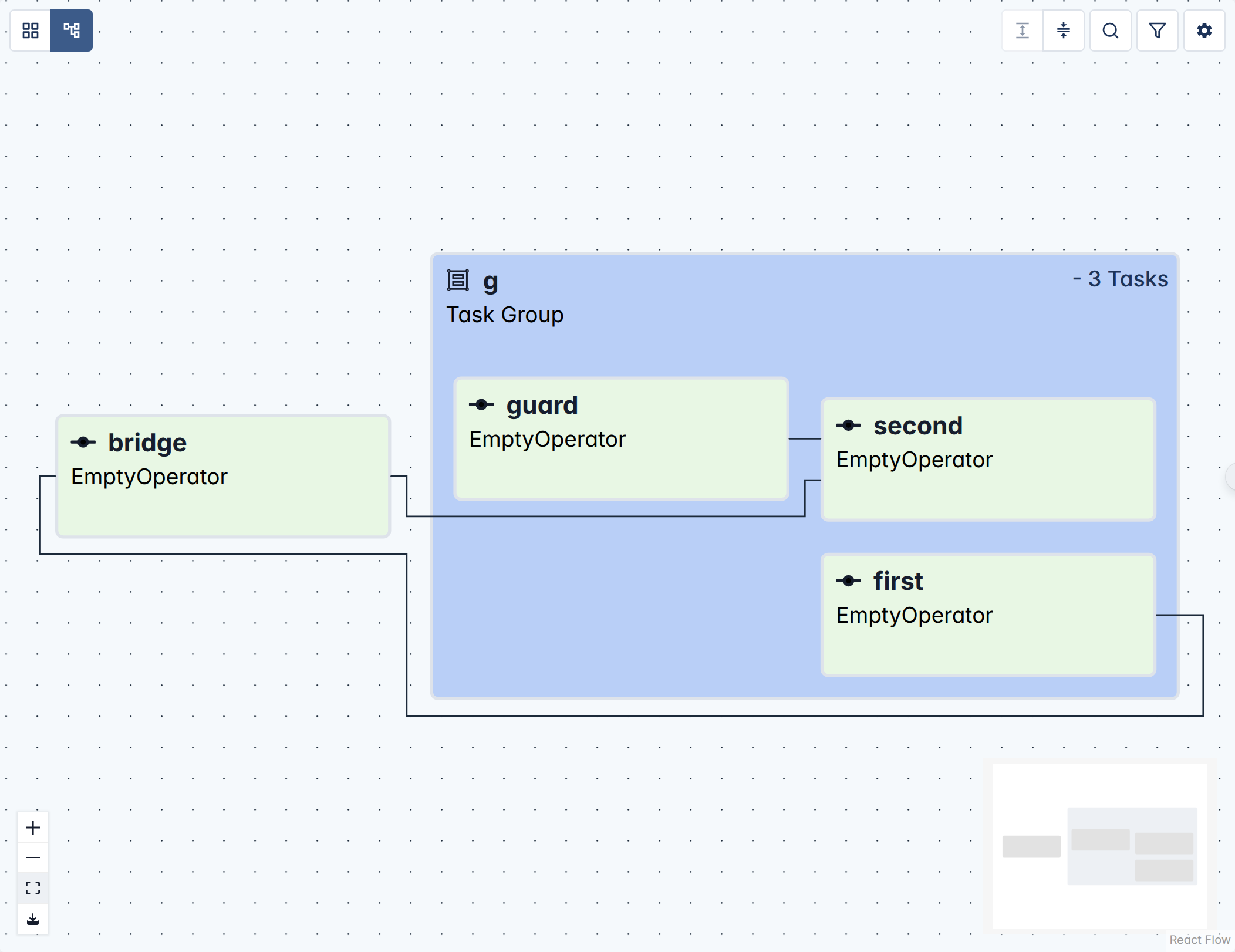

The filtered example Dag without the filter (rendered before this change too; included for comparison)

---

Was generative AI tooling used to co-author this PR?

• Yes — Claude Code (Opus 5.5)

Generated-by: Claude Code (Opus 5.5) following the guidelines

[JH0917]

Hi @dheerajturaga, thanks for driving this. We're hitting the same 500 in production: dbt models
collapsed into a TaskGroup, with a Spark task wired between two of them, so the Dag has exactly
the g.a >> ext >> g.b shape from #73678.

While looking into it, I tried a slightly different approach and opened it as #73933. Instead of
collapsing the SCC, it releases one child on the cycle inside the existing pass-numbering loop,
and acyclic Dags are sorted exactly as before. Details and a benchmark are in the PR description.

---

Drafted-by: Claude Code (Opus 5.5); reviewed by @JH0917 before posting

[dheerajturaga]

@ashb your thoughts on this? Would like this to go in 3.4 as agreed in the Lazy Consensus https://lists.apache.org/thread/5fpwlxg4y6jhyrw7n2m3jz3o7t6xvhlk
