LibEQOL

Quality-of-life toolkit for WoW addons. It ships the Edit Mode helper sublib LibEQOLEditMode-1.0 (Blizzard Edit Mode integration), the optional native helper sublib LibEQOLNativeEditMode-1.0 (own manager/selection/snap/grid flow), the Settings helper sublib LibEQOLSettingsMode-1.0 (helpers for Blizzard Settings UI), and the optional debug helper sublib LibEQOLDebugMode-1.0 (on-demand timeline/session bug reports). LibEQOL-1.0 remains a backward-compatible alias to LibEQOLEditMode-1.0.

Full docs live at: https://github.com/R41z0r/LibEQOL/wiki

Requirements

• Retail WoW 10.0+ (uses Edit Mode APIs)
• LibStub (bundled by most addon frameworks)

Install / embed

• Standalone: Drop LibEQOL into Interface/AddOns and enable it; it loads automatically.
• Embedded: Place the folder in libs/ and include LibEQOL.xml in your TOC:

  <Include file="libs/LibEQOL/LibEQOL.xml" />


• Optional native edit mode: Keep the default include above unchanged and add this only if you want the native mode:

  <Include file="libs/LibEQOL/LibEQOLNativeEditMode.xml" />


• Optional debug mode: Keep the default include above unchanged and add this only if you want the debug/bugreport module:

  <Include file="libs/LibEQOL/LibEQOLDebugMode.xml" />


• Packaging (BigWigs packager): Do not list LibEQOL as an External; it can bleed into other addons and create XML/template conflicts. Vendor it explicitly (e.g. with the GitHub Action below) into your libs/ directory instead.

GitHub Action helper

Use the published action in this repo to pull the latest LibEQOL release ZIP during CI and unpack it into your addon. Set destination to the folder that should contain LibEQOL/ (for example EnhanceQoL/libs); the action creates that path, extracts the ZIP, and stages destination/LibEQOL in your repo.

- name: Install LibEQOL
  uses: R41z0r/LibEQOL@v1.0.0
  with:
    destination: EnhanceQoL/libs   # results in EnhanceQoL/libs/LibEQOL

Optional inputs: repo (defaults to this repo) and github-token (defaults to github.token). Outputs: tag and asset_url from the resolved release.

Architecture

• Single-file design with explicit layers: state tracker, pool manager, widget builders, dialog controller, and selection handling.
• Modules under LibEQOL: LibEQOLEditMode (shipping), LibEQOLNativeEditMode (optional), LibEQOLSettingsMode (shipping), and LibEQOLDebugMode (optional) share core helpers while exposing separate APIs.
• Umbrella entry (LibEQOL.lua) surfaces sublibs on _G.LibEQOL (EditMode and SettingsMode load with LibEQOL.xml; NativeEditMode/DebugMode resolve when their extra XML files are additionally loaded).
• All widgets are built on-demand from our factories; no embedded Blizzard UI copies or borrowed layout code.
• Public API for Edit Mode (AddFrame, AddFrameSettings, AddFrameSettingsButton, callbacks, SettingType, etc.) stays stable for drop-in compatibility.

Getting started (TL;DR)

local EditMode = LibStub("LibEQOLEditMode-1.0")

-- 1) Make your frame moveable via Edit Mode
EditMode:AddFrame(MyFrame, function(frame, layoutName, point, x, y)
    frame:ClearAllPoints()
    frame:SetPoint(point, UIParent, point, x, y)
end, { point = "CENTER", x = 0, y = 0 })

-- 2) Optional: add settings rows under the Edit Mode dialog
EditMode:AddFrameSettings(MyFrame, {
    {
        name = "Show title",
        kind = EditMode.SettingType.Checkbox,
        default = true,
        get = function(layout) return MyDB[layout].showTitle end,
        set = function(layout, value) MyDB[layout].showTitle = value end,
    },
    {
        name = "Size",
        kind = EditMode.SettingType.Slider,
        minValue = 0.5,
        maxValue = 2,
        valueStep = 0.05,
        default = 1,
        get = function(layout) return MyDB[layout].scale end,
        set = function(layout, value) MyDB[layout].scale = value end,
        formatter = function(value) return string.format("%.2fx", value) end,
    },
})

-- 3) Optional: custom button under the settings list
EditMode:AddFrameSettingsButton(MyFrame, {
    text = "Open full config",
    click = function() OpenOptionsFrameToCategory("MyAddon") end,
})

-- 4) Optional: react to Edit Mode events
EditMode:RegisterCallback("layout", function(layoutName)
    print("Now editing layout:", layoutName)
end)

Feature highlights

• Selection overlay and move handles that integrate with Blizzard Edit Mode selection/highlight.
• Keyboard nudging (arrow keys, Shift for larger steps) and reset-to-default positioning.
• Auto-built settings dialog with pooled widgets (checkbox, dropdown, multi dropdown, slider, color picker, checkbox+color, dropdown+color) and a built-in reset action.
• The same settings dialog can also be spawned outside Edit Mode for a custom standalone config popup, but only when you opt in via the standalone API.
• Optional max height for per-frame settings lists with automatic scrolling.
• Per-frame action buttons plus automatic "Reset Position" button (can be hidden).
• Optional checkbox panel under the Edit Mode manager for toggling your addon frames on/off.
• Callbacks for entering/exiting Edit Mode and when the active layout changes.
• Helpers to refresh setting enable states when your backing data changes.

API quick reference

• AddFrame(frame, callback, defaultPosition) – register a frame for Edit Mode. callback(frame, layoutName, point, x, y) fires on move/reset; anchors stay relative to the frame’s current parent (or existing relative frame when nudging) and defaultPosition defaults to { point = "CENTER", x = 0, y = 0 } relative to the parent. Opt-in overlay/label toggle via defaultPosition.enableOverlayToggle = true (or overlayToggleEnabled = true).
• Native-only control API (LibEQOLNativeEditMode-1.0): EnterEditMode(), ExitEditMode(), ToggleEditMode(), SetSnapEnabled(enabled), GetSnapEnabled(), SetGridEnabled(enabled), GetGridEnabled(), SetGridSize(size), GetGridSize().
• Reset button: sets settings back to their default (and colorDefault where applicable); settings without defaults are skipped.
• AddFrameSettings(frame, settingsTable) – supply rows for the settings dialog. See Setting rows.
• AddFrameSettingsButton(frame, data) – add a custom button (text, click handler) using the built-in Edit Mode extra button style.
• ShowStandaloneSettingsDialog(frame, options?) / HideStandaloneSettingsDialog(frame?) / IsStandaloneSettingsDialogShown(frame?) – opt-in helpers to open, close, or query the shared settings dialog outside Edit Mode. Existing Edit Mode behavior stays unchanged unless you call them. Omit options.settings / options.buttons to reuse rows already registered for the frame; pass them directly to build a popup for an unregistered frame instead.
• SetFrameResetVisible(frame, showReset) – hide or re-show the built-in "Reset Position" button.
• SetFrameSettingsResetVisible(frame, showReset) – hide or re-show the settings "Reset to Default" button for that frame.
• SetFrameSettingsMaxHeight(frame, height) – set a max height (in pixels) for the settings list only (button bar excluded); pass nil to clear the override.
• SetFrameDragEnabled(frame, enabledOrPredicate) – allow/deny drag + keyboard nudging for a frame; pass a boolean or function (layoutName, layoutIndex); nil removes the override. You can also set defaultPosition.allowDrag/dragEnabled on AddFrame.
• SetFrameOverlayToggleEnabled(frame, enabled) – show/hide the eye-button for that frame; default is disabled until you opt-in.
• SetFrameCollapseExclusive(frame, enabled) – make collapsible headers on this frame exclusive (expanding one collapses the others). You can also set defaultPosition.collapseExclusive (alias exclusiveCollapse) on AddFrame.
• AddManagerToggle(data) / AddManagerCheckbox(data) – add a checkbox row under EditModeManagerFrame to show/hide frames. Provide label, frames, and optional id/category (if id is omitted, label is used as the id).
• AddManagerCategory(data) – register a category header (with optional sort) for manager toggles.
• RemoveManagerToggle(id) / RefreshManagerToggles() / SetManagerTogglePanelMaxHeight(height) – manage or resize the manager toggle panel.
• Default visibility flags on AddFrame: default.showReset = false hides the Reset Position button; default.showSettingsReset = false hides the Settings Reset button for that frame.
• Settings layout overrides on AddFrame: default.settingsSpacing, default.settingsMaxHeight (or default.maxSettingsHeight), default.sliderHeight, default.dropdownHeight, default.multiDropdownHeight, default.multiDropdownSummaryHeight, default.checkboxHeight, default.colorHeight, default.checkboxColorHeight, default.dropdownColorHeight, default.inputHeight, default.dividerHeight, default.collapsibleHeight.
• RegisterCallback(event, callback) – event is "enter", "exit", "layout", "layoutadded", "layoutdeleted", "layoutrenamed", "layoutduplicate", or "spec"; layout callbacks receive (layoutName, layoutIndex); layoutadded receives (addedLayoutIndex, activateNewLayout, isLayoutImported, layoutType, layoutName); layoutdeleted receives (deletedLayoutIndex, deletedLayoutName) using the cached name from before the refresh; layoutrenamed receives (oldName, newName, layoutIndex) where layoutIndex is the UI index (custom layouts are offset by +2), and only fires for real rename operations (not index shifts caused by delete); layoutduplicate receives (addedLayoutIndex, duplicateIndices, isLayoutImported, layoutType, layoutName) (name is the new layout once, not per duplicate); spec receives the current spec index (from GetSpecialization()).
• GetActiveLayoutName() / GetActiveLayoutIndex() / IsInEditMode() – query current state.
• GetLayouts() – returns an array of { index, name, layoutType, isActive } for UI indices (1/2 use LAYOUT_STYLE_MODERN / LAYOUT_STYLE_CLASSIC and Enum.EditModeLayoutType.Modern / Enum.EditModeLayoutType.Classic when available); isActive is 1 for the active layout, else 0.
• GetFrameDefaultPosition(frame) – retrieve the default position for a registered frame.
• lib.internal:RefreshSettings() – re-evaluate isEnabled/disabled predicates on visible rows.
• Debug mode (LibEQOLDebugMode-1.0) – opt-in session capture with explicit StartSession/StopSession; supports tiers (off/basic/deep), manual traces/errors/spans, optional SavedVariables persistence (savedRoot + path), and report export via BuildReport().

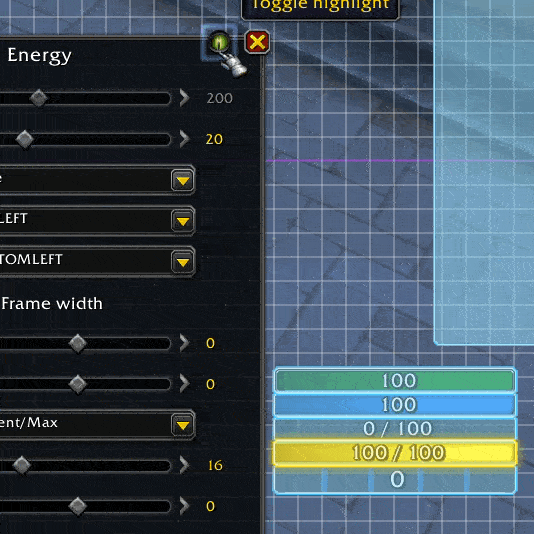

Example: examples/EditModeExamples.lua (https://raw.githubusercontent.com/R41z0r/LibEQOL/main/examples/EditModeExamples.lua) includes an "Overlay Toggle" frame showing how to opt into the eye-button via enableOverlayToggle = true. Native example: examples/NativeEditModeExamples.lua (/eqolnative to toggle). Also see docs/overlay-toggle-example.lua. GIF: https://raw.githubusercontent.com/wiki/R41z0r/LibEQOL/assets/widgets/frames/example-hideoverlay.gif

Setting rows (schema + examples)

Each row needs name, kind, get(layoutName), set(layoutName, value), and default. Optional isEnabled(layoutName) or disabled(layoutName) toggle availability.

Kinds (from EditMode.SettingType):

• Checkbox – boolean toggle.
• Dropdown – either values = { { text = "Option" }, ... } or a generator(owner, rootDescription, data) for dynamic menus. Single-select; use MultiDropdown for checkbox menus. Optional height to force scrolling.
• MultiDropdown – checkbox menu that returns a map of selected values; supports values/options, optional optionfunc(layout), isSelected, and setSelected. Optional height to force scrolling.
• Slider – minValue, maxValue, optional valueStep, formatter, allowInput (show text box).
• Input – plain text/number input with optional numeric, maxChars, inputWidth, readOnly.
• Color – values resolve to { r, g, b, a? }; set hasOpacity to allow alpha.
• CheckboxColor – boolean + color. Use colorGet(layout) and colorSet(layout, color) (or setColor) plus colorDefault.
• DropdownColor – dropdown behavior plus a color swatch via colorGet/colorSet.
• tooltip = "..." can be added to any row to show a GameTooltip on hover.

Distribution tips

• Keep LibStub loading before LibEQOL.lua when embedding.
• If you rely on load-on-demand, list LibEQOL in OptionalDeps so the library is ready before your code runs.

Troubleshooting

• If a frame does not move, ensure it is parented and not forbidden during combat; Edit Mode is blocked in combat.
• Call lib.internal:RefreshSettings() after you mutate data that controls isEnabled/disabled logic for visible rows.
